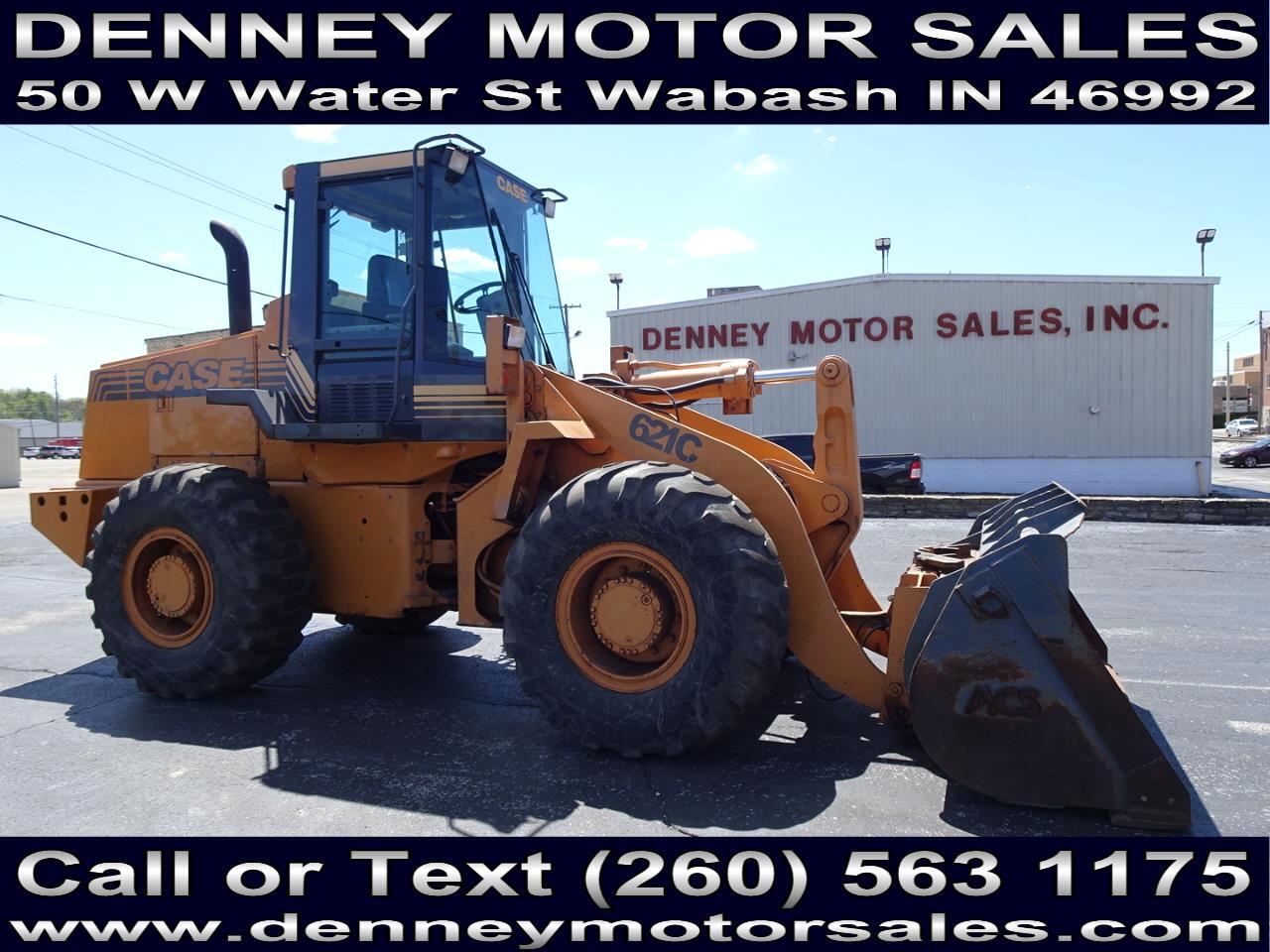

2000 Case 621D. 5.9L Turbo Diesel Engine, Quick Disconnect, Serviced, Ready to work!

2000

Case

621C

12,143

Automatic

JEE0128617

SR4

5.9L Turbo Diesel

Select

Black

Orange

4WD

Heavy Equipment

IN


Estimated By E.P.A.
City
0
Hwy
0
Actual Mileage May Vary

Video



Vehicle Options



Vehicle Description


Model ............................. Case 6BT-590
Type................ 4-stroke, turbocharged
Cylinders ............................................. 6
Bore/Stroke .................... 4.02” x 4.72” (102 X 120 mm)
Displacement ................ 359 in3 (5.9 L)
Fuel injection.............................. Direct
Fuel......................................... #2 Diesel
Fuel filter......... Replaceable, full flow spin-on cartridge
Air filter .................. Dry type element w/warning restriction indicator
Radiator Core type. In-line 9 fins/in
Rows of tubes.................................. 5
Fan Style............................ 8 blade puller
Diameter..................... 28” (711 mm)
Water pump Style ........... Integral
Engine oil Pump........ Deep sump plate cooler with pressurized under-piston nozzles
Pump operating angle ratings
Side-to-side ..................... Rated 45°
Fore and aft..................... Rated 45°
Oil filtration................. Replaceable full flow spin-on cartridge
Engine speeds (rpm)
Rated speed, full load.............. 2200
Low idle ............................... 920–980
High idle, no load ........... 2305-2385
Horsepower
Gross...... 142 (106 kW) @ 1800 rpm
Net ......... 134 (100 kW) @ 1800 rpm
Peak torque @ 1400 rpm
Gross.................. 452 lb·ft (613 N·m)
Net ..................... 441 lb·ft (598 N·m)
Torque rise @ 2000 rpm ............... 25%
Transmission ....... 4F/3R Proportional w/Electronic Control Module torque sensing autoshift/manual shift and modulation
Gears ................................... Helical cut Gear ratios Forward Reverse
1st...................... 4.012 .............. 3.804
2nd .................... 2.024 .............. 1.919
3rd..................... 1.088 .............. 1.031
4th ..................... 0.619................. NA
Torque converter Stall ratio.................................. 2.66:1
Differential....................... Limited slip w/45% transfer on front and rear axles
Rear axle oscillation .............. 24° total
Front and rear axle
Differential ratio ........................ 3.18
Planetary ratio............................ 6.40
Final axle ratio ......................... 20.36
Planetaries............................ Outboard
Service brakes .......Hydraulically actuated, maintenance-free, multiple wet disc w/accumulator to all four wheels
Brake surface area.... 355 in2 per hub (0.229 m2)
Parking brakes ........... Spring-applied hydraulic release disc on transmission output shaft
Travel speeds – mph (km/h)
w/20.5x25 L3 Tires
Forward Reverse
1st ................... 4.3 (6.9) ....... 4.5 (7.3)
2nd ............... 8.3 (13.4) ..... 8.8 (14.1)
3rd .............. 14.7 (23.7) ... 15.4 (24.8)
4th............... 23.6 (38.0)............... NA
Pump (steering/implement) ............Closed centered pressure/flow compensated
Variable displacement ..... 4.33 in3/rev
45.2 gpm @ 2000 rpm @ 3600 psi
(171 L/min @ 2000 rpm
@ 24 822 kPa)
Loader control valve... Closed-center, sectional 2, 3 or 4-spool with pilot control for lift, tilt and auxiliary hydraulics, electromagnetic detents in float, raise and rollback
Loader auxiliary Steering ................... Hydraulic orbital center-pivot articulating w/on-demand oil flow
High pressure standby.......... 3625 psi (25 000 kPa)
Filtration ............................. 10-micron, full flow replaceable cartridges in return line, condition indicator light for filter
Voltage...... 24 Volts, negative ground
Fuel tank..................... 50.0 gal (189 L)
Hydraulic system
Total ...................... 30.0 gal (113.6 L)
Reservoir ................ 15.0 gal (56.8 L)
Transmission
Service w/filter .......... 2.0 gal (7.8 L)
Front and rear axle
Total axle (each) ...... 22.0 qt (20.9 L)
Engine oil w/filter ...... 16.0 qt (15.1 L)
Cooling system (-40)... 5.1 gal (19.2 L)
Alternator................................. 45 amp
Batteries ............................... (2) 12 Volt
